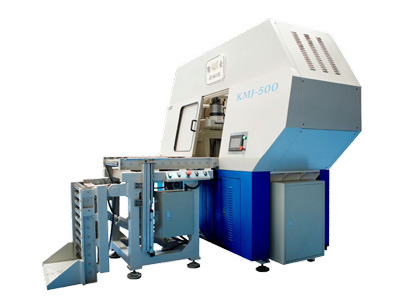

The equipment is used for separating the upper and lower die of aluminum profile extrusion dies by the way of hydraulic machinery, which is suitable for the separated operation of the upper and lower die for aluminum extrusion dies in aluminum manufacturing industry. Compared with the prevailing mode of manual hammering in the current industry, the use of the equipment can greatly improve the working efficiency of the die separation, reduce the working labor intensity of the workers. The safety, stability, and efficiency of the die separating process can avoid the accident or fatigue operation to the damage of body and die, which caused by the careless manual operation. It is the indispensable ideal equipment for standard production safety processes of aluminum manufacturing industry.
In order to effectively improve the separated operation of machine, this machine adopts hopper lifting die, flat roller conveying die, automatic positioning separating die, automatic conveying platform output die. Every process can be running at the same time (feeding, separating and discharging), so as to effectively improve the production efficiency.
Model |
JYKM500 |
Separating Force (Maximum) |
380 kN |
Systemic Operating Pressure (Maximum) |
21 MPa |
Diameter of Die |
Φ160 ~ Φ500 mm |
Height of Die (Maximum) |
360 mm |
Gap Depth of Die (Minimum) |
10 mm |
Gap Width of Die |
4 mm |
Height of Die Locating Pin |
25 mm |
Total Power |
(7.5+2.2)kW |
Voltage |
380 V |
Dimension (L*W*H) |
2000 × 1200 × 2200 mm |
Weight |
3500 kg Approx. |
